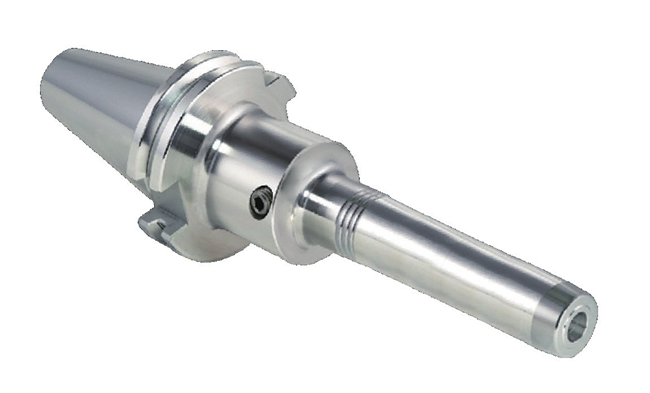

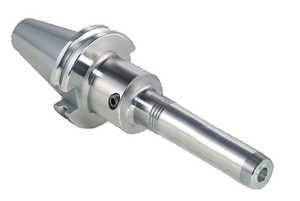

Hydraulic chuck, SLIM-SK

Availability:

Quantity:



Inquire Add to Basket

Product Description

Hydraulic Chuck, Slim
Tools holder DIN69871


MODEL	d	D1	D2	D3	L1	I	H

SK40 HCM03 L75	3	11	13.0	46	19	18	110
SK40 HCM03 L90	3	11	14.2	46	30	18	125
SK40 HCM03 L135	3	11	18.5	46	71	18	170
SK40 HCM04 L75	4	11	13.0	46	19	24	110
SK40 HCM04 L90	4	11	14.2	46	30	24	125
SK40 HCM04 L135	4	11	18.5	46	71	24	170
SK40 HCM06 L90	6	13	15.8	46	26	29	125
SK40 HCM06 L135	6	13	20.5	46	71	29	170
SK40 HCM06 L150	6	13	22.2	46	87	29	185
SK40 HCM06 L165	6	13	23.7	46	102	29	200
SK40 HCM06 L180	6	13	25.4	46	118	29	215
SK40 HCM08 L90	8	15	17.9	46	27	29	125
SK40 HCM08 L135	8	15	22.6	46	72	29	170
SK40 HCM08 L150	8	15	24.2	46	87	29	185
SK40 HCM08 L165	8	15	25.8	46	103	29	200
SK40 HCM08 L180	8	15	27.4	46	118	29	215
SK40 HCM10 L90	10	17	20.4	46	32	40	125
SK40 HCM10 L135	10	17	24.6	46	72	40	170
SK40 HCM10 L150	10	17	26.3	46	87	40	185
SK40 HCM10 L165	10	17	27.8	46	103	40	200
SK40 HCM10 L180	10	17	29.5	46	119	40	215
SK40 HCM12 L90	12	19	22.5	46	33	40	125
SK40 HCM12 L135	12	19	26.7	46	73	40	170
SK40 HCM12 L150	12	19	28.3	46	88	40	185
SK40 HCM12 L165	12	19	30.0	46	104	40	200
SK40 HCM12 L180	12	19	31.5	46	119	40	215
SK40 HCM16 L135	16	23	30.6	52.5	72	40	90
SK40 HCM16 L165	16	23	33.8	52.5	103	40	120
SK40 HCM16 L180	16	23	35.5	52.5	119	40	135
SK40 HCM20 L150	20	28	34.7	62	63	40	85
SK40 HCM20 L180	20	28	37.8	62	93	40	115
SK40 HCM20 L195	20	28	39.5	62	109	40	130
SK40 HCM25 L150	25	37	43.9	62	65	50	85
SK40 HCM25 L180	25	37	47.1	62	96	50	115
SK40 HCM25 L195	25	37	48.8	62	112	50	130

SK50 HCM06 L105	6	13	15.8	46	26	29	161
SK50 HCM06 L150	6	13	20.5	46	71	29	206
SK50 HCM06 L165	6	13	22.2	46	87	29	221
SK50 HCM06 L180	6	13	23.7	46	102	29	236
SK50 HCM06 L195	6	13	25.4	46	118	29	251
SK50 HCM08 L105	8	15	17.8	46	27	29	160
SK50 HCM08 L150	8	15	22.5	46	72	29	205
SK50 HCM08 L165	8	15	24.1	46	87	29	220
SK50 HCM08 L180	8	15	25.8	46	103	29	235
SK50 HCM08 L195	8	15	27.4	46	118	29	250
SK50 HCM10 L150	10	17	24.6	46	72	40	205
SK50 HCM10 L165	10	17	26.1	46	87	40	220
SK50 HCM10 L180	10	17	27.8	46	103	40	235
SK50 HCM10 L195	10	17	29.5	46	119	40	250
SK50 HCM12 L150	12	19	26.7	46	73	40	205
SK50 HCM12 L165	12	19	28.2	46	88	40	220
SK50 HCM12 L180	12	19	29.9	46	104	40	235
SK50 HCM12 L195	12	19	31.5	46	119	40	250
SK50 HCM16 L150	16	23	30.5	52.5	72	40	90
SK50 HCM16 L180	16	23	33.8	52.5	103	40	120
SK50 HCM16 L195	16	23	34.6	52.5	119	40	135
SK50 HCM20 L150	20	28	34.6	62	63	40	85
SK50 HCM20 L180	20	28	37.7	62	93	40	115
SK50 HCM20 L195	20	28	39.4	62	109	40	130
SK50 HCM25 L150	25	37	43.6	62	65	50	85
SK50 HCM25 L180	25	37	47.1	62	96	50	115
SK50 HCM25 L195	25	37	48.7	62	112	50	130
