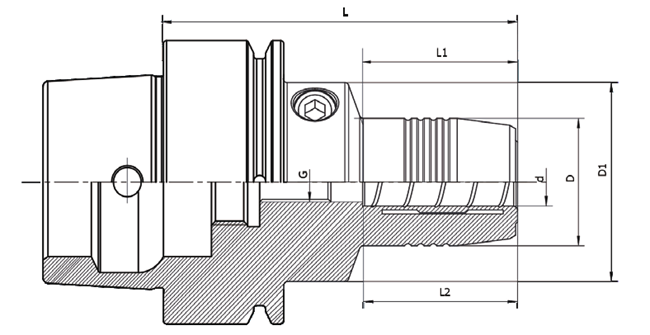

| Tool Holder DIN 69893 (ISO 12164) HSK-E | ||||||
| MODEL | d | D1 | D2 | L1 | L2 | G |
| HSK40E HC06 L70 | 6 | 26 | 34 | 36 | 27 | M5 |
| HSK40E HC08 L70 | 8 | 28 | 34 | 36 | 27 | M6 |
| HSK40E HC10 L75 | 10 | 30 | 34 | 42 | 32 | M6 |
| HSK40E HC12 L080 | 12 | 32 | 34 | 48 | 37 | M6 |
| HSK50E HC06 L200 | 6 | 26 | 40 | 28 | 27 | M5 |
| HSK50E HC08 L200 | 8 | 28 | 40 | 28 | 27 | M6 |
| HSK50E HC10 L200 | 10 | 30 | 40 | 34 | 32 | M8x1 |
| HSK50E HC12 L200 | 12 | 32 | 40 | 44 | 37 | M10x1 |
| HSK50E HC106 L200 | 16 | 38 | 53 | 30 | 42 | M12x1 |
| HSK50E HC20 L200 | 20 | 42 | 60 | 29 | 42 | M16x1 |
| Tool Holder DIN 69893 (ISO 12164) HSK-E | ||||||
| MODEL | d | D1 | D2 | L1 | L2 | G |
| HSK40E HC06 L70 | 6 | 26 | 34 | 36 | 27 | M5 |
| HSK40E HC08 L70 | 8 | 28 | 34 | 36 | 27 | M6 |
| HSK40E HC10 L75 | 10 | 30 | 34 | 42 | 32 | M6 |
| HSK40E HC12 L080 | 12 | 32 | 34 | 48 | 37 | M6 |
| HSK50E HC06 L200 | 6 | 26 | 40 | 28 | 27 | M5 |
| HSK50E HC08 L200 | 8 | 28 | 40 | 28 | 27 | M6 |
| HSK50E HC10 L200 | 10 | 30 | 40 | 34 | 32 | M8x1 |
| HSK50E HC12 L200 | 12 | 32 | 40 | 44 | 37 | M10x1 |
| HSK50E HC106 L200 | 16 | 38 | 53 | 30 | 42 | M12x1 |
| HSK50E HC20 L200 | 20 | 42 | 60 | 29 | 42 | M16x1 |
