Hydraulic chuck, SLIM-HSK-A

Availability:

Quantity:



Inquire Add to Basket

Product Description

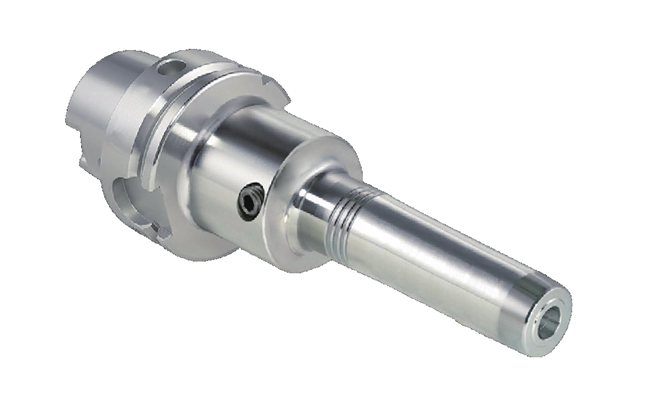

Hydraulic Chuck, Slim
Tools holder DIN69893 (ISO12164) HSK-A

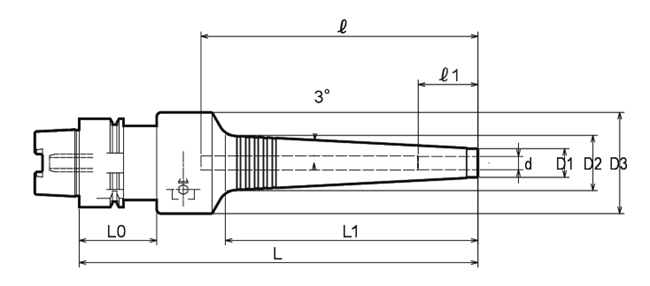

MODEL	d	L1	D1	D2	D3	L0	ℓ	ℓ1
HSK40A HCM03 L90	3	28	11	14.0	46	35	74	16
HSK40A HCM03 L100	3	37	11	14.9	46	35	84	16
HSK40A HCM03 L145	3	84	11	19.9	46	35	129	16
HSK40A HCM04 L90	4	28	11	14.0	46	35	74	19
HSK40A HCM04 L100	4	37	11	14.9	46	35	84	19
HSK40A HCM04 L145	4	84	11	19.9	46	35	129	19
HSK40A HCM06 L105	6	38	13	17.0	46	35	55	27
HSK40A HCM06 L150	6	84	13	21.9	46	35	97	27
HSK40A HCM06 L165	6	99	13	23.4	46	35	112	27
HSK40A HCM06 L180	6	114	13	25.0	46	35	127	27
HSK40A HCM08 L105	8	38	15	19.0	46	35	55	27
HSK40A HCM08 L150	8	84	15	23.9	46	35	97	27
HSK40A HCM08 L165	8	99	15	25.4	46	35	112	27
HSK40A HCM08 L180	8	114	15	27.0	46	35	127	27
HSK40A HCM10 L120	10	53	17	22.6	46	35	69	33
HSK40A HCM10 L150	10	84	17	25.9	46	35	97	33
HSK40A HCM10 L165	10	99	17	27.4	46	35	112	33
HSK40A HCM10 L180	10	114	17	29.0	46	35	127	33
HSK40A HCM12 L120	12	53	19	24.6	46	35	69	36
HSK40A HCM12 L150	12	84	19	27.9	46	35	97	36
HSK40A HCM12 L165	12	99	19	29.4	46	35	112	36
HSK40A HCM12 L180	12	114	19	31.0	46	35	127	36

HSK50A HCM03 L95	3	28	11	14.0	46	42	75	16
HSK50A HCM03 L105	3	37	11	14.9	46	42	85	16
HSK50A HCM03 L150	3	84	11	19.9	46	42	130	16
HSK50A HCM04 L95	4	28	11	14.0	46	42	75	19
HSK50A HCM04 L105	4	37	11	14.9	46	42	85	19
HSK50A HCM04 L150	4	84	11	19.9	46	42	130	19
HSK50A HCM06 L105	6	38	13	17.0	46	42	53	27
HSK50A HCM06 L150	6	84	13	21.9	46	42	95	27
HSK50A HCM06 L165	6	99	13	23.4	46	42	110	27
HSK50A HCM06 L180	6	114	13	25.0	46	42	125	27
HSK50A HCM08 L105	8	38	15	19.0	46	42	53	27
HSK50A HCM08 L150	8	84	15	23.9	46	42	95	27
HSK50A HCM08 L165	8	99	15	25.4	46	42	110	27
HSK50A HCM08 L180	8	114	15	27.0	46	42	125	27
HSK50A HCM10 L120	10	53	17	22.6	46	42	67	33
HSK50A HCM10 L150	10	84	17	25.9	46	42	95	33
HSK50A HCM10 L165	10	99	17	27.4	46	42	110	33
HSK50A HCM10 L180	10	114	17	29.0	46	42	125	33
HSK50A HCM12 L120	12	53	19	24.6	46	42	67	36
HSK50A HCM12 L150	12	84	19	27.9	46	42	95	36
HSK50A HCM12 L165	12	99	19	29.4	46	42	110	36
HSK50A HCM12 L180	12	114	19	31.0	46	42	125	36

HSK63A HCM03 L80	3	28	11	14.0	46	-	58	16
HSK63A HCM03 L90	3	37	11	14.9	46	-	68	16
HSK63A HCM03 L135	3	84	11	19.9	46	-	113	16
HSK63A HCM04 L80	4	28	11	14.0	46	-	58	19
HSK63A HCM04 L90	4	37	11	14.9	46	-	68	19
HSK63A HCM04 L135	4	84	11	19.9	46	-	113	19
HSK63A HCM06 L90	6	38	13	17.0	46	-	53	27
HSK63A HCM06 L135	6	84	13	21.9	46	-	92	27
HSK63A HCM06 L150	6	99	13	23.4	46	-	107	27
HSK63A HCM06 L165	6	114	13	25.0	46	-	122	27
HSK63A HCM06 L180	6	130	13	26.7	46	-	137	27
HSK63A HCM08 L90	8	38	15	19.0	46	-	53	27
HSK63A HCM08 L135	8	84	15	23.9	46	-	92	27
HSK63A HCM08 L150	8	99	15	25.4	46	-	107	27
HSK63A HCM08 L165	8	114	15	27.0	46	-	122	27
HSK63A HCM08 L180	8	130	15	28.7	46	-	137	27
HSK63A HCM10 L105	10	53	17	22.6	46	-	67	33
HSK63A HCM10 L135	10	84	17	25.9	46	-	92	33
HSK63A HCM10 L150	10	99	17	27.4	46	-	107	33
HSK63A HCM10 L165	10	114	17	29.0	46	-	122	33
HSK63A HCM10 L180	10	130	17	30.7	46	-	137	33
HSK63A HCM12 L105	12	53	19	24.6	46	-	67	36
HSK63A HCM12 L135	12	84	19	27.9	46	-	92	36
HSK63A HCM12 L150	12	99	19	29.4	46	-	107	36
HSK63A HCM12 L165	12	114	19	31.0	46	-	122	36
HSK63A HCM12 L180	12	130	19	32.7	46	-	137	36
HSK63A HCM16 L135	16	84	23	31.9	52.5	-	91	40
HSK63A HCM16 L165	16	114	23	35.0	52.5	-	120	40
HSK63A HCM16 L180	16	129	23	36.6	52.5	-	135	40
HSK63A HCM20 L150	20	84	28	36.9	60	42	91	40
HSK63A HCM20 L180	20	114	28	40.0	60	42	120	40
HSK63A HCM20 L195	20	129	28	41.6	60	42	135	40
HSK63A HCM25 L150	25	84	37	45.9	60	42	91	50
HSK63A HCM25 L180	25	114	37	49.0	60	42	120	50
HSK63A HCM25 L195	25	129	37	50.6	60	42	135	50

HSK100A HCM06 L105	6	38	13	17.0	46	-	53	27
HSK100A HCM06 L150	6	84	13	21.9	46	-	92	27
HSK100A HCM06 L165	6	99	13	23.4	46	-	107	27
HSK100A HCM06 L180	6	114	13	25.0	46	-	122	27
HSK100A HCM06 L195	6	130	13	26.7	46	-	137	27
HSK100A HCM08 L105	8	38	15	19.0	46	-	53	27
HSK100A HCM08 L150	8	84	15	23.9	46	-	92	27
HSK100A HCM08 L165	8	99	15	25.4	46	-	107	27
HSK100A HCM08 L180	8	114	15	27.0	46	-	122	27
HSK100A HCM08 L195	8	130	15	28.7	46	-	137	27
HSK100A HCM10 L150	10	84	17	25.9	46	-	92	27
HSK100A HCM10 L165	10	99	17	27.4	46	-	107	33
HSK100A HCM10 L180	10	114	17	29.0	46	-	122	33
HSK100A HCM10 L195	10	130	17	30.7	46	-	137	33
HSK100A HCM12 L150	12	84	19	27.9	46	-	92	36
HSK100A HCM12 L165	12	99	19	29.4	46	-	107	36
HSK100A HCM12 L180	12	114	19	31.0	46	-	122	36
HSK100A HCM12 L195	12	130	19	32.7	46	-	137	36
HSK100A HCM16 L150	16	84	23	31.9	46	-	91	40
HSK100A HCM16 L180	16	114	23	35.0	52.5	-	120	40
HSK100A HCM16 L195	16	129	23	36.6	52.5	-	135	40
HSK100A HCM20 L150	20	84	28	36.9	52.5	-	91	40
HSK100A HCM20 L180	20	114	28	40.0	60	-	120	40
HSK100A HCM20 L195	20	129	28	41.6	60	-	135	40
HSK100A HCM25 L150	25	84	37	45.9	60	-	91	50
HSK100A HCM25 L180	25	114	37	49.0	60	-	120	50
HSK100A HCM25 L195	25	129	37	50.6	60	-	135	50
