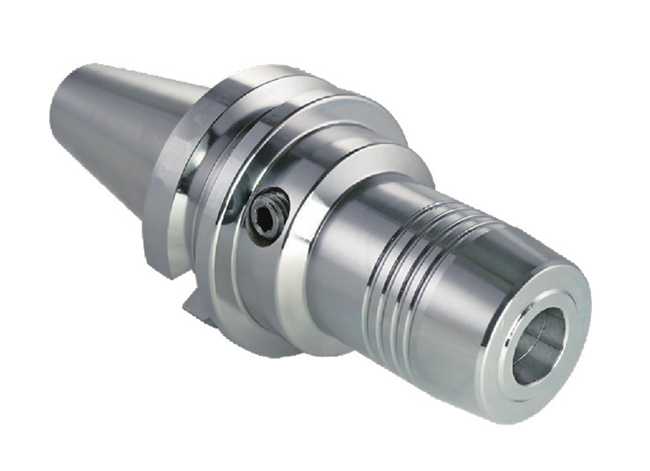

Hydraulic chuck, BT

Availability:

Quantity:



Inquire Add to Basket

Product Description

MODEL	d	D1	D2	L1	L2	G
BT30 HC06 L70	6	26	45	28.5	30	M5
BT30 HC08 L70	8	28	45	29	30	M6
BT30 HC10 L70	10	30	45	31	32	M8x1
BT30 HC12 L85	12	32	45	45	37	M10x1
BT30 HC14 L85	14	34	45	45	37	M10x1
BT30 HC16 L90	16	38	45	50	42	M10x1
BT30 HC18 L90	18	40	45	50	42	M8x1
BT30 HC20 L90	20	42	45	52	44	M8x1

BT40 HC06 L65	6	26	44.5	43	30	M5
BT40 HC08 L65	8	28	44.5	44.5	30	M6
BT40 HC10 L65	10	30	44.5	44.5	34	M8x1
BT40 HC12 L65	12	32	44.5	44.5	39	M10x1
BT40 HC14 L65	14	34	44.5	44.5	39	M10x1
BT40 HC16 L65	16	38	50	44.5	42	M12x1
BT40 HC18 L65	18	40	50	44.5	42	M8x1
BT40 HC20 L65	20	42	50	45.5	44	M10x1

BT40 HC06 L90	6	26	44.5	43	30	M5
BT40 HC08 L90	8	28	44.5	44.5	30	M6
BT40 HC10 L90	10	30	44.5	44.5	34	M8x1
BT40 HC12 L90	12	32	44.5	44.5	39	M10x1
BT40 HC14 L90	14	34	44.5	44.5	39	M10x1
BT40 HC16 L90	16	38	50	44.5	42	M12x1
BT40 HC18 L90	18	40	50	44.5	42	M8x1
BT40 HC20 L90	20	42	50	44.5	44	M10x1
BT40 HC25 L100	25	57	62	55.5	50	M16x1
BT40 HC32 L105	32	64	-	-	54	M16x1

BT40 HC06 L150	6	26	50	102.5	30	M5
BT40 HC08 L150	8	28	50	103	30	M6
BT40 HC10 L150	10	30	50	103	34	M8x1
BT40 HC12 L150	12	32	50	103.5	39	M10x1
BT40 HC14 L150	14	34	50	104	39	M10x1
BT40 HC16 L150	16	38	50	104	42	M12x1
BT40 HC18 L150	18	40	50	105	42	M12x1
BT40 HC20 L150	20	42	50	105	44	M16x1
BT40 HC25 L150	25	57	62	105	50	M16x1
BT40 HC32 L150	32	64	-	-	54	M16x1

BT40 HC06 L200	6	26	44.5	152.5	30	M5
BT40 HC08 L200	8	28	44.5	154	30	M6
BT40 HC10 L200	10	30	44.5	154	34	M8x1
BT40 HC12 L200	12	32	44.5	155	39	M10x1
BT40 HC14 L200	14	34	44.5	155	39	M10x1
BT40 HC16 L200	16	38	50	156	42	M12x1
BT40 HC18 L200	18	40	50	156	42	M10x1
BT40 HC20 L200	20	42	50	157	44	M10x1
BT40 HC25 L200	25	57	62	157	50	M16x1
BT40 HC32 L200	32	64	-	-	54	M16x1

BT50 HC06 L90	6	26	44.5	34	30	M5
BT50 HC08 L90	8	28	44.5	34	30	M6
BT50 HC10 L90	10	30	44.5	34	32	M8x1
BT50 HC12 L90	12	32	44.5	34	37	M10x1
BT50 HC14 L90	14	34	44.5	34	39	M10x1
BT50 HC16 L90	16	38	50	34	42	M12x1
BT50 HC18 L90	18	40	50	34	42	M12x1
BT50 HC20 L90	20	42	50	34	44	M16x1
BT50 HC25 L105	25	57	70	48.5	50	M16x1
BT50 HC32 L115	32	64	70	59.5	54	M16x1

BT50 HC06 L120	6	26	44.5	34	27	M5
BT50 HC08 L120	8	28	44.5	34	27	M6x1
BT50 HC10 L120	10	30	44.5	34	32	M8x1
BT50 HC12 L120	12	32	44.5	34	37	M10x1
BT50 HC14 L120	14	34	44.5	34	37	M10x1
BT50 HC16 L120	16	38	44.5	34	42	M12x1
BT50 HC18 L120	18	40	44.5	34	42	M12x1
BT50 HC20 L120	20	42	50	34	44	M16x1

BT50 HC06 L150	6	26	44.5	34	30	M5
BT50 HC08 L150	8	28	44.5	34	30	M6
BT50 HC10 L150	10	30	44.5	34	34	M8x1
BT50 HC12 L150	12	32	44.5	34	37	M10x1
BT50 HC14 L150	14	34	44.5	34	37	M10x1
BT50 HC16 L150	16	38	44.5	34	42	M12x1
BT50 HC18 L150	18	40	44.5	34	42	M12x1
BT50 HC20 L150	20	42	50	34	44	M16x1
BT50 HC25 L150	25	57	63	97	48	M16x1
BT50 HC32 L150	32	64	70	93	54	M16x1

chuck
