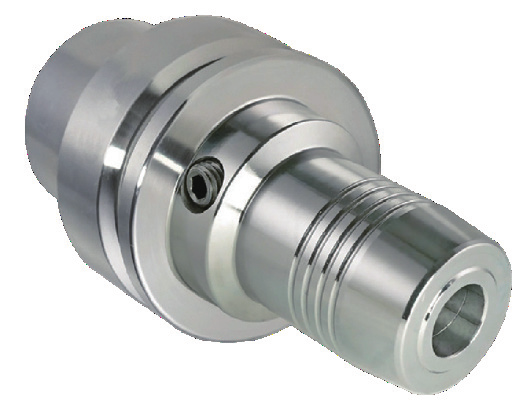

| Hydraulic Chuck, standard | ||||||
| Tool Holder DIN 69893 (ISO 12164) HSK-F | ||||||

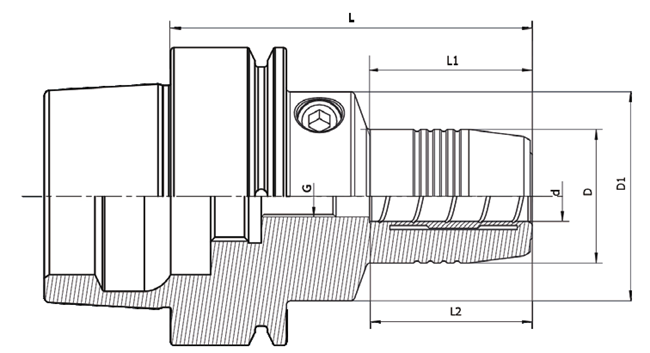

| MODEL | d | D1 | D2 | L1 | L2 | G |
| HSK63F HC06 L70 | 6 | 26 | 50 | 24 | 27 | M5 |
| HSK63F HC08 L70 | 8 | 28 | 50 | 25 | 27 | M6 |
| HSK63F HC10 L80 | 10 | 30 | 50 | 35 | 32 | M8x1 |
| HSK63F HC12 L85 | 12 | 32 | 50 | 40 | 37 | M10x1 |
| HSK63F HC14 L85 | 14 | 34 | 50 | 40 | 37 | M10x1 |
| HSK63F HC16 L90 | 16 | 38 | 50 | 46 | 42 | M12x1 |
| HSK63F HC18 L90 | 18 | 40 | 50 | 47 | 42 | M12x1 |
| HSK63F HC20 L90 | 20 | 42 | 50 | 48 | 42 | M16x1 |
| HSK63F HC25 L120 | 25 | 57 | 63 | 59 | 48 | M16x1 |
| HSK63F HC32 L125 | 32 | 64 | 75 | 63 | 55 | M16x1 |
