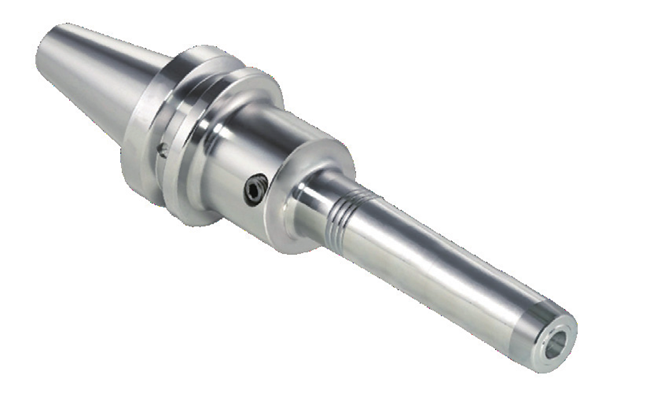

| Hydraulic Chuck, slim | |||||||
| Tool Holder JIS B6339 | |||||||

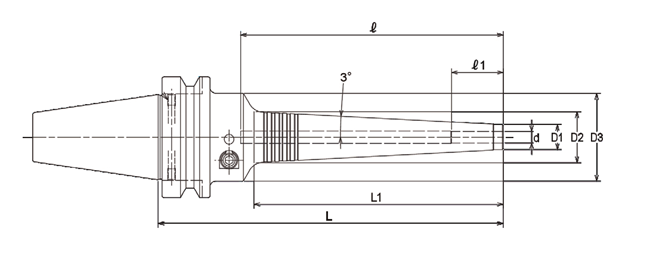

| MODEL | d | L1 | D1 | D2 | D3 | ℓ | ℓ1 |
| BT30 HCM03 L70 | 3 | 28 | 11 | 14.0 | 46 | 93 | 16 |
| BT30 HCM03 L85 | 3 | 37 | 11 | 14.9 | 46 | 108 | 16 |
| BT30 HCM03 L130 | 3 | 84 | 11 | 19.9 | 46 | 153 | 16 |
| BT30 HCM04 L70 | 4 | 28 | 11 | 14.0 | 46 | 93 | 19 |
| BT30 HCM04 L85 | 4 | 37 | 11 | 14.9 | 46 | 108 | 19 |
| BT30 HCM04 L130 | 4 | 84 | 11 | 19.9 | 46 | 153 | 19 |
| BT30 HCM06 L90 | 6 | 38 | 13 | 17.0 | 46 | 58 | 27 |
| BT30 HCM06 L135 | 6 | 84 | 13 | 21.9 | 46 | 92 | 27 |
| BT30 HCM06 L150 | 6 | 99 | 13 | 23.4 | 46 | 107 | 27 |
| BT30 HCM06 L165 | 6 | 114 | 13 | 25.0 | 46 | 122 | 27 |
| BT30 HCM06 L180 | 6 | 130 | 13 | 26.7 | 46 | 137 | 27 |
| BT30 HCM08 L90 | 8 | 38 | 15 | 19.0 | 46 | 58 | 27 |
| BT30 HCM08 L135 | 8 | 84 | 15 | 23.9 | 46 | 92 | 27 |
| BT30 HCM08 L150 | 8 | 99 | 15 | 25.4 | 46 | 107 | 27 |
| BT30 HCM08 L165 | 8 | 114 | 15 | 27.0 | 46 | 122 | 27 |
| BT30 HCM08 L180 | 8 | 130 | 15 | 28.7 | 46 | 137 | 27 |
| BT30 HCM10 L105 | 10 | 53 | 17 | 22.6 | 46 | 73 | 33 |
| BT30 HCM10 L135 | 10 | 84 | 17 | 25.9 | 46 | 92 | 33 |
| BT30 HCM10 L150 | 10 | 99 | 17 | 27.4 | 46 | 107 | 33 |
| BT30 HCM10 L165 | 10 | 114 | 17 | 29.0 | 46 | 122 | 33 |
| BT30 HCM10 L180 | 10 | 130 | 17 | 30.7 | 46 | 137 | 33 |
| BT30 HCM12 L105 | 12 | 53 | 19 | 24.6 | 46 | 73 | 36 |
| BT30 HCM12 L135 | 12 | 84 | 19 | 27.9 | 46 | 92 | 36 |
| BT30 HCM12 L150 | 12 | 99 | 19 | 29.4 | 46 | 107 | 36 |
| BT30 HCM12 L165 | 12 | 114 | 19 | 31.0 | 46 | 122 | 36 |
| BT30 HCM12 L180 | 12 | 130 | 19 | 32.7 | 46 | 137 | 36 |
