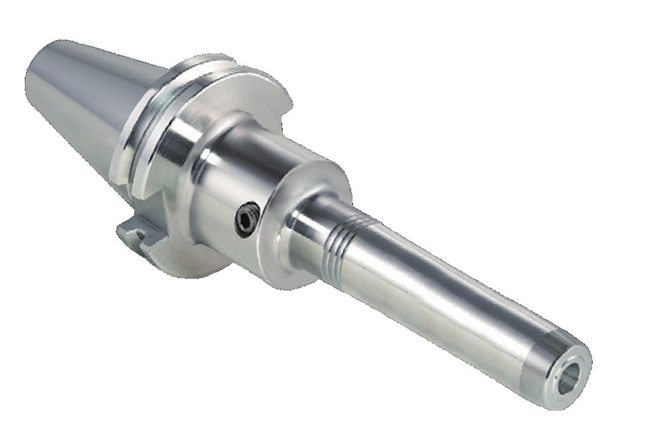

| Hydraulic Chuck, Slim | |||||||
| Tools holder ANSI B5.50 | |||||||

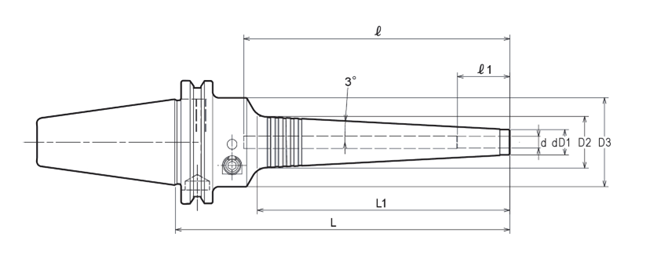

| MODEL | d | D1 | D2 | D3 | L1 | ℓ | ℓ1 |
| CAT40 HCM03 L75 | 3 | 28 | 11 | 14 | 46 | 110 | 16 |
| CAT40 HCM03 L90 | 3 | 37 | 11 | 14.9 | 46 | 125 | 16 |
| CAT40 HCM03 L135 | 3 | 84 | 11 | 19.9 | 46 | 170 | 16 |
| CAT40 HCM04 L75 | 4 | 28 | 11 | 14 | 46 | 110 | 19 |
| CAT40 HCM04 L90 | 4 | 37 | 11 | 14.9 | 46 | 125 | 19 |
| CAT40 HCM04 L135 | 4 | 84 | 11 | 19.9 | 46 | 170 | 19 |
| CAT40 HCM06 L90 | 6 | 38 | 13 | 17 | 46 | 53 | 27 |
| CAT40 HCM06 L150 | 6 | 84 | 13 | 21.9 | 46 | 92 | 27 |
| CAT40 HCM06 L165 | 6 | 99 | 13 | 23.4 | 46 | 107 | 27 |
| CAT40 HCM06 L180 | 6 | 114 | 13 | 25 | 46 | 122 | 27 |
| CAT40 HCM06 L195 | 6 | 130 | 13 | 26.7 | 46 | 137 | 27 |
| CAT40 HCM08 L90 | 8 | 38 | 15 | 19 | 46 | 53 | 27 |
| CAT40 HCM08 L150 | 8 | 84 | 15 | 23.9 | 46 | 92 | 27 |
| CAT40 HCM08 L165 | 8 | 99 | 15 | 25.4 | 46 | 107 | 27 |
| CAT40 HCM08 L180 | 8 | 114 | 15 | 27 | 46 | 122 | 27 |
| CAT40 HCM08 L195 | 8 | 130 | 15 | 28.7 | 46 | 137 | 27 |
| CAT40 HCM10 L105 | 10 | 53 | 17 | 22.6 | 46 | 68 | 33 |
| CAT40 HCM10 L150 | 10 | 84 | 17 | 25.9 | 46 | 92 | 33 |
| CAT40 HCM10 L165 | 10 | 99 | 17 | 27.4 | 46 | 107 | 33 |
| CAT40 HCM10 L180 | 10 | 114 | 17 | 29 | 46 | 122 | 33 |
| CAT40 HCM10 L195 | 10 | 130 | 17 | 30.7 | 46 | 137 | 33 |
| CAT40 HCM12 L105 | 12 | 53 | 19 | 24.6 | 46 | 68 | 36 |
| CAT40 HCM12 L150 | 12 | 84 | 19 | 27.9 | 46 | 92 | 36 |
| CAT40 HCM12 L165 | 12 | 99 | 19 | 29.4 | 46 | 107 | 36 |
| CAT40 HCM12 L180 | 12 | 114 | 19 | 31 | 46 | 122 | 36 |
| CAT40 HCM12 L195 | 12 | 130 | 19 | 32.7 | 46 | 137 | 36 |
| CAT40 HCM16 L150 | 16 | 84 | 23 | 31.9 | 52.5 | 91 | 40 |
| CAT40 HCM16 L180 | 16 | 114 | 23 | 35 | 52.5 | 120 | 40 |
| CAT40 HCM16 L195 | 16 | 129 | 23 | 38.6 | 52.5 | 135 | 40 |
| CAT40 HCM20 L150 | 20 | 84 | 28 | 36.9 | 60 | 91 | 40 |
| CAT40 HCM20 L180 | 20 | 114 | 28 | 40 | 60 | 120 | 40 |
| CAT40 HCM20 L195 | 20 | 129 | 28 | 41 | 60 | 135 | 40 |
| CAT40 HCM25 L150 | 25 | 84 | 37 | 45.9 | 60 | 91 | 50 |
| CAT40 HCM25 L180 | 25 | 114 | 37 | 49 | 60 | 120 | 50 |
| CAT40 HCM25 L195 | 25 | 129 | 37 | 50.6 | 60 | 135 | 50 |
| CAT50 HCM06 L150 | 6 | 84 | 13 | 21.9 | 46 | 92 | 27 |
| CAT50 HCM06 L195 | 6 | 130 | 13 | 26.7 | 46 | 137 | 27 |
| CAT50 HCM08 L150 | 8 | 84 | 15 | 23.9 | 46 | 92 | 27 |
| CAT50 HCM08 L195 | 8 | 130 | 15 | 28.7 | 46 | 137 | 27 |
| CAT50 HCM10 L150 | 10 | 84 | 17 | 25.9 | 46 | 92 | 33 |
| CAT50 HCM10 L195 | 10 | 130 | 17 | 30.7 | 46 | 137 | 33 |
| CAT50 HCM12 L150 | 12 | 84 | 19 | 27.9 | 46 | 92 | 36 |
| CAT50 HCM12 L195 | 12 | 130 | 19 | 32.7 | 46 | 137 | 36 |
| CAT50 HCM16 L150 | 16 | 84 | 23 | 31.9 | 52.5 | 91 | 40 |
| CAT50 HCM16 L195 | 16 | 129 | 23 | 36.6 | 52.5 | 135 | 40 |
| CAT50 HCM20 L150 | 20 | 84 | 28 | 36.9 | 60 | 91 | 40 |
| CAT50 HCM20 L195 | 20 | 129 | 28 | 41.6 | 60 | 135 | 40 |
| CAT50 HCM25 L150 | 25 | 84 | 37 | 45.9 | 60 | 91 | 50 |
| CAT50 HCM25 L195 | 25 | 129 | 37 | 50.6 | 60 | 135 | 50 |
