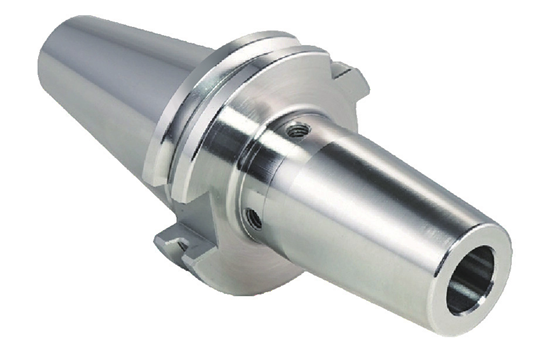

Shrink Fit Chuck, 4.5° SK

Availability:

Quantity:



Inquire Add to Basket

Product Description

Shrink Fit Chuck, 4.5°, standard
Tools holder DIN69871

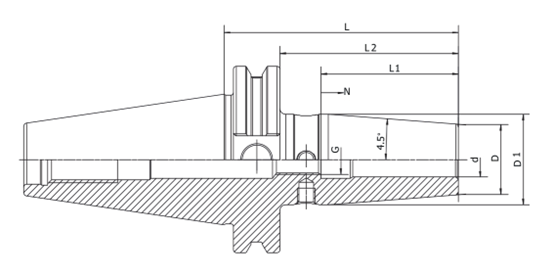

MODEL	COOLANT TYPE	d	D1	D2	L2	L1	N	G

SK30 SF03 L80	SK30 SF03 L80C	3	15	20	60.9	-	-	-
SK30 SF04 L80	SK30 SF04 L80C	4	15	20	60.9	-	-	-
SK30 SF05 L80	SK30 SF05 L80C	5	15	20	60.9	-	-	-
SK30 SF06 L80	SK30 SF06 L80C	6	21	27	60.9	36	10	M5
SK30 SF08 L80	SK30 SF08 L80C	8	21	27	60.9	36	10	M6
SK30 SF10 L80	SK30 SF10 L80C	10	24	32	60.9	42	10	M8x1
SK30 SF12 L80	SK30 SF12 L80C	12	24	32	60.9	47	10	M10x1
SK30 SF14 L80	SK30 SF14 L80C	14	27	34	60.9	47	10	M10x1
SK30 SF16 L80	SK30 SF16 L80C	16	27	34	60.9	50	10	M12x1
SK30 SF18 L80	SK30 SF18 L80C	18	33	42	60.9	50	10	M12x1
SK30 SF20 L80	SK30 SF20 L80C	20	33	42	60.9	52	10	M16x1

SK30 SF03 L120	SK30 SF03 L120C	3	15	20	100.9	-	-	-
SK30 SF04 L120	SK30 SF04 L120C	4	15	20	100.9	-	-	-
SK30 SF05 L120	SK30 SF05 L120C	5	15	20	100.9	-	-	-
SK30 SF06 L120	SK30 SF06 L120C	6	21	27	100.9	36	10	M5
SK30 SF08 L120	SK30 SF08 L120C	8	21	27	100.9	36	10	M6
SK30 SF10 L120	SK30 SF10 L120C	10	24	32	100.9	42	10	M8x1
SK30 SF12 L120	SK30 SF12 L120C	12	24	32	100.9	47	10	M10x1
SK30 SF16 L120	SK30 SF16 L120C	16	27	34	100.9	50	10	M12x1

SK40 SF03 L80	SK40 SF03 L80C	3	15	20	60.9	-	-	-
SK40 SF04 L80	SK40 SF04 L80C	4	15	20	60.9	-	-	-
SK40 SF05 L80	SK40 SF05 L80C	5	15	20	60.9	-	-	-
SK40 SF06 L80	SK40 SF06 L80C	6	21	27	60.9	36	10	M5
SK40 SF08 L80	SK40 SF08 L80C	8	21	27	60.9	36	10	M6
SK40 SF10 L80	SK40 SF10 L80C	10	24	31	60.9	42	10	M8x1
SK40 SF12 L80	SK40 SF12 L80C	12	24	31	60.9	47	10	M10x1
SK40 SF14 L80	SK40 SF14 L80C	14	27	34	60.9	47	10	M10x1
SK40 SF16 L80	SK40 SF16 L80C	16	27	34	60.9	50	10	M12x1
SK40 SF18 L80	SK40 SF18 L80C	18	33	40	60.9	50	10	M12x1
SK40 SF20 L80	SK40 SF20 L80C	20	33	40	60.9	52	10	M16x1
SK40 SF25 L100	SK40 SF25 L100C	25	44	50	80.9	58	10	M16x1
SK40 SF32 L100	SK40 SF32 L100C	32	44	50	80.9	62	10	M16x1

SK40 SF03 L120	SK40 SF03 L120C	3	15	20	100.9	-	-	-
SK40 SF04 L120	SK40 SF04 L120C	4	15	20	100.9	-	-	-
SK40 SF05 L120	SK40 SF05 L120C	5	15	20	100.9	-	-	-
SK40 SF06 L120	SK40 SF06 L120C	6	21	27	100.9	36	10	M5
SK40 SF08 L120	SK40 SF08 L120C	8	21	27	100.9	36	10	M6
SK40 SF10 L120	SK40 SF10 L120C	10	24	32	100.9	42	10	M8x1
SK40 SF12 L120	SK40 SF12 L120C	12	24	32	100.9	47	10	M10x1
SK40 SF14 L120	SK40 SF14 L120C	14	27	34	100.9	47	10	M10x1
SK40 SF16 L120	SK40 SF16 L120C	16	27	34	100.9	50	10	M12x1
SK40 SF18 L120	SK40 SF18 L120C	18	31	42	100.9	50	10	M12x1
SK40 SF20 L120	SK40 SF20 L120C	20	31	42	100.9	52	10	M16x1
SK40 SF25 L120	SK40 SF25 L120C	25	44	50	100.9	58	10	M16x1

SK40 SF03 L160	SK40 SF03 L160C	3	15	20	140.9	-	-	-
SK40 SF04 L160	SK40 SF04 L160C	4	15	20	140.9	-	-	-
SK40 SF05 L160	SK40 SF05 L160C	5	15	20	140.9	-	-	-
SK40 SF06 L160	SK40 SF06 L160C	6	21	32	140.9	36	10	M5
SK40 SF08 L160	SK40 SF08 L160C	8	21	32	140.9	36	10	M6
SK40 SF10 L160	SK40 SF10 L160C	10	24	34	140.9	42	10	M8x1
SK40 SF12 L160	SK40 SF12 L160C	12	24	34	140.9	47	10	M10x1
SK40 SF14 L160	SK40 SF14 L160C	14	27	42	140.9	47	10	M10x1
SK40 SF16 L160	SK40 SF16 L160C	16	27	42	140.9	50	10	M12x1
SK40 SF18 L160	SK40 SF18 L160C	18	33	50	140.9	50	10	M12x1
SK40 SF20 L160	SK40 SF20 L160C	20	33	50	140.9	52	10	M16x1
SK40 SF25 L160	SK40 SF25 L160C	25	44	50	140.9	58	10	M16x1
SK40 SF32 L160	SK40 SF32 L160C	32	44	50	140.9	62	10	M16x1

SK40 SF06 L200	SK40 SF06 L200C	6	21	32	180.9	36	10	M5
SK40 SF08 L200	SK40 SF08 L200C	8	21	32	180.9	36	10	M6
SK40 SF10 L200	SK40 SF10 L200C	10	24	34	180.9	42	10	M8x1
SK40 SF12 L200	SK40 SF12 L200C	12	24	34	180.9	47	10	M10x1
SK40 SF14 L200	SK40 SF14 L200C	14	27	42	180.9	47	10	M10x1
SK40 SF16 L200	SK40 SF16 L200C	16	27	42	180.9	50	10	M12x1
SK40 SF18 L200	SK40 SF18 L200C	18	33	50	180.9	50	10	M12x1
SK40 SF20 L200	SK40 SF20 L200C	20	33	50	180.9	52	10	M16x1
SK40 SF25 L200	SK40 SF25 L200C	25	44	50	180.9	58	10	M16x1
SK40 SF32 L200	SK40 SF32 L200C	32	44	50	180.9	62	10	M16x1

SK50 SF06 L80	SK50 SF06 L80C	6	21	27	60.9	36	10	M5
SK50 SF08 L80	SK50 SF08 L80C	8	21	27	60.9	36	10	M6
SK50 SF10 L80	SK50 SF10 L80C	10	24	31	60.9	42	10	M8x1
SK50 SF12 L80	SK50 SF12 L80C	12	24	31	60.9	47	10	M10x1
SK50 SF14 L80	SK50 SF14 L80C	14	27	34	60.9	47	10	M10x1
SK50 SF16 L80	SK50 SF16 L80C	16	27	34	60.9	50	10	M12x1
SK50 SF18 L80	SK50 SF18 L80C	18	33	40	60.9	50	10	M12x1
SK50 SF20 L80	SK50 SF20 L80C	20	33	39.5	60.9	52	10	M16x1
SK50 SF25 L90	SK50 SF25 L90C	25	44	52.5	70.9	58	10	M16x1
SK50 SF32 L90	SK50 SF32 L90C	32	44	52.5	70.9	62	10	M16x1

SK50 SF06 L120	SK50 SF06 L120C	6	21	27	100.9	36	10	M5
SK50 SF08 L120	SK50 SF08 L120C	8	21	27	100.9	36	10	M6
SK50 SF10 L120	SK50 SF10 L120C	10	24	32	100.9	42	10	M8x1
SK50 SF12 L120	SK50 SF12 L120C	12	24	32	100.9	47	10	M10x1
SK50 SF14 L120	SK50 SF14 L120C	14	27	34	100.9	47	10	M10x1
SK50 SF16 L120	SK50 SF16 L120C	16	27	34	100.9	50	10	M12x1
SK50 SF18 L120	SK50 SF18 L120C	18	33	42	100.9	50	10	M12x1
SK50 SF20 L120	SK50 SF20 L120C	20	33	42	100.9	52	10	M16x1
SK50 SF25 L120	SK50 SF25 L120C	25	44	53	100.9	58	10	M16x1
SK50 SF32 L120	SK50 SF32 L120C	32	44	53	100.9	62	10	M16x1

SK50 SF06 L160	SK50 SF06 L160C	6	21	32	140.9	36	10	M5
SK50 SF08 L160	SK50 SF08 L160C	8	21	32	140.9	36	10	M6
SK50 SF10 L160	SK50 SF10 L160C	10	24	34	140.9	42	10	M8x1
SK50 SF12 L160	SK50 SF12 L160C	12	24	34	140.9	47	10	M10x1
SK50 SF14 L160	SK50 SF14 L160C	14	27	42	140.9	47	10	M10x1
SK50 SF16 L160	SK50 SF16 L160C	16	27	42	140.9	50	10	M12x1
SK50 SF18 L160	SK50 SF18 L160C	18	33	51	140.9	50	10	M12x1
SK50 SF20 L160	SK50 SF20 L160C	20	33	51	140.9	52	10	M16x1
SK50 SF25 L160	SK50 SF25 L160C	25	44	60	140.9	58	10	M16x1
SK50 SF32 L160	SK50 SF32 L160C	32	44	60	140.9	62	10	M16x1

SK50 SF06 L200	SK50 SF06 L200C	6	21	32	180.9	36	10	M5
SK50 SF08 L200	SK50 SF08 L200C	8	21	32	180.9	36	10	M6
SK50 SF10 L200	SK50 SF10 L200C	10	24	34	180.9	42	10	M8x1
SK50 SF12 L200	SK50 SF12 L200C	12	24	34	180.9	47	10	M10x1
SK50 SF14 L200	SK50 SF14 L200C	14	27	42	180.9	47	10	M10x1
SK50 SF16 L200	SK50 SF16 L200C	16	27	42	180.9	50	10	M12x1
SK50 SF18 L200	SK50 SF18 L200C	18	33	51	180.9	50	10	M12x1
SK50 SF20 L200	SK50 SF20 L200C	20	33	51	180.9	52	10	M16x1
SK50 SF25 L200	SK50 SF25 L200C	25	44	60	180.9	58	10	M16x1
SK50 SF32 L200	SK50 SF32 L200C	32	44	60	180.9	62	10	M16x1
