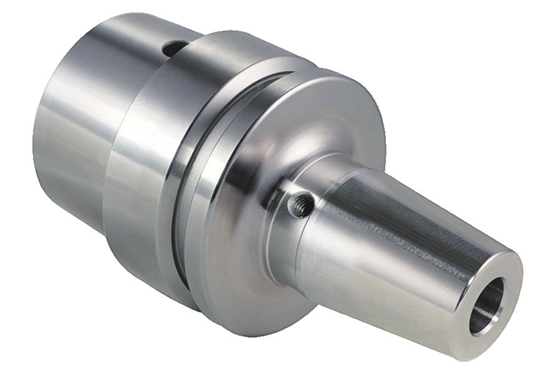

Shrink Fit Chuck 4.5° HSK-E

Availability:

Quantity:



Inquire Add to Basket

Product Description

Shrink Fit Chuck, 4.5°, standard
Tools holder DIN69893 (ISO12164) HSK-E

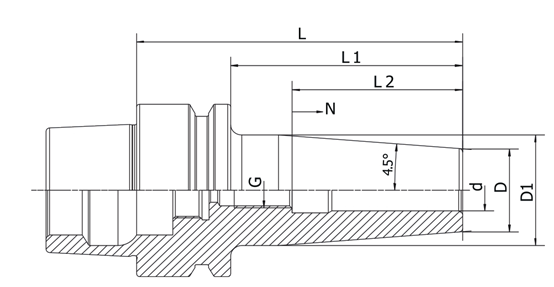

MODEL	d	D1	D2	L2	L1	N	G
HSK25E SF06 L50	6	15	19	40	36	5	M5

HSK32E SF03 L60	3	15	20	40	-	-	-
HSK32E SF04 L60	4	15	20	40	-	-	-
HSK32E SF05 L60	5	15	20	40	-	-	-
HSK32E SF06 L70	6	20	26	50	36	10	M5
HSK32E SF08 L70	8	20	26	50	36	10	M6
HSK32E SF10 L70	10	24	29	50	42	10	M8x1
HSK32E SF12 L70	12	24	29	50	47	10	M10x1

HSK40E SF03 L60	3	15	20	40	-	-	-
HSK40E SF04 L60	4	15	20	40	-	-	-
HSK40E SF05 L60	5	15	20	40	-	-	-
HSK40E SF06 L65	6	21	27	45	36	10	M5
HSK40E SF08 L65	8	21	27	45	36	10	M6
HSK40E SF10 L65	10	24	30	45	42	10	M8x1
HSK40E SF12 L65	12	24	30	45	47	10	M10x1

HSK40E SF03 L80	3	15	20	60	-	-	-
HSK40E SF04 L80	4	15	20	60	-	-	-
HSK40E SF05 L80	5	15	20	60	-	-	-
HSK40E SF06 L80	6	21	27	60	36	10	M5
HSK40E SF08 L80	8	21	27	60	36	10	M6
HSK40E SF10 L80	10	24	32	60	42	10	M8x1
HSK40E SF12 L80	12	24	32	70	47	10	M10x1
HSK40E SF16 L90	16	27	34	70	50	10	M12x1

HSK40E SF03 L120	3	15	20	100	-	-	-
HSK40E SF04 L120	4	15	20	100	-	-	-
HSK40E SF05 L120	5	15	20	100	-	-	-
HSK40E SF06 L120	6	21	27	100	36	10	M5
HSK40E SF08 L120	8	21	27	100	36	10	M6
HSK40E SF10 L120	10	24	32	100	42	10	M8x1
HSK40E SF12 L120	12	24	32	100	47	10	M10x1

HSK50E SF03 L80	3	15	20	54	-	-	-
HSK50E SF04 L80	4	15	20	54	-	-	-
HSK50E SF05 L80	5	15	20	54	-	-	-
HSK50E SF06 L80	6	21	27	54	36	10	M5
HSK50E SF08 L80	8	21	27	54	36	10	M6
HSK50E SF10 L85	10	24	32	59	42	10	M8x1
HSK50E SF12 L90	12	24	32	64	47	10	M10x1
HSK50E SF14 L90	14	27	34	64	47	10	M10x1
HSK50E SF16 L95	16	27	34	69	50	10	M12x1
HSK50E SF18 L95	18	33	41	69	50	10	M12x1
HSK50E SF20 L100	20	33	41	74	52	10	M16x1

HSK63E SF06 L90	6	21	27	64	36	10	M5
HSK63E SF08 L90	8	21	27	64	36	10	M6
HSK63E SF10 L90	10	24	32	64	42	10	M8x1
HSK63E SF12 L90	12	24	32	64	47	10	M10x1
HSK63E SF14 L90	14	27	34	64	47	10	M10x1
HSK63E SF16 L95	16	27	34	69	50	10	M12x1
HSK63E SF18 L95	18	33	42	69	50	10	M12x1
HSK63E SF20 L100	20	33	42	74	52	10	M16x1
HSK63E SF25 L115	25	44	53	89	58	10	M16x1
