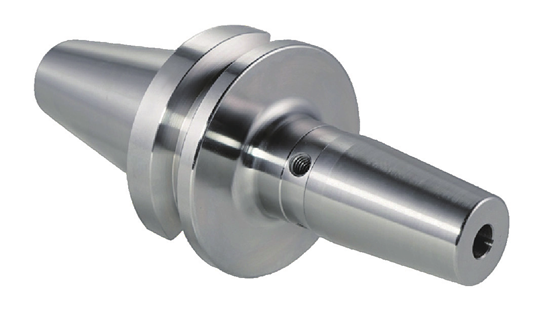

Shrink Fit Chuck 4.5° BBT

Availability:

Quantity:



Inquire Add to Basket

Product Description

Shrink Fit Chuck, 4.5°, standard
Tools holder JIS B6339

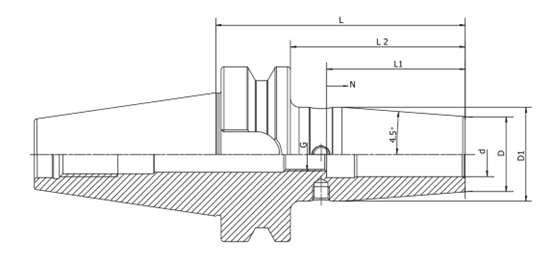

MODEL	COOLANT TYPE	d	D1	D2	L2	L1	N	G

BBT40 SF03 L80	BBT40 SF03 L80C	3	15	20	53	-	-	-
BBT40 SF04 L80	BBT40 SF04 L80C	4	15	20	53	-	-	-
BBT40 SF05 L80	BBT40 SF05 L80C	5	15	20	53	-	-	-
BBT40 SF06 L90	BBT40 SF06 L90C	6	21	27	63	36	10	M5
BBT40 SF08 L90	BBT40 SF08 L90C	8	21	27	63	36	10	M6
BBT40 SF10 L90	BBT40 SF10 L90C	10	24	31	63	42	10	M8x1
BBT40 SF12 L90	BBT40 SF12 L90C	12	24	31	63	47	10	M10x1
BBT40 SF14 L90	BBT40 SF14 L90C	14	27	34	63	47	10	M10x1
BBT40 SF03 L90	BBT40 SF03 L90C	16	27	34	63	50	10	M12x1
BBT40 SF18 L90	BBT40 SF18 L90C	18	33	40	63	50	10	M12x1
BBT40 SF20 L90	BBT40 SF20 L90C	20	33	40	63	52	10	M16x1
BBT40 SF25 L100	BBT40 SF25 L100C	25	44	53	73	58	10	M16x1
BBT40 SF32 L100	BBT40 SF32 L100C	32	44	53	73	62	10	M16x1

BBT40 SF03 L120	BBT40 SF03 L120C	3	15	20	93	-	-	-
BBT40 SF04 L120	BBT40 SF04 L120C	4	15	20	93	-	-	-
BBT40 SF05 L120	BBT40 SF05 L120C	5	15	20	93	-	-	-
BBT40 SF06 L120	BBT40 SF06 L120C	6	21	27	93	36	10	M5
BBT40 SF08 L120	BBT40 SF08 L120C	8	21	27	93	36	10	M6
BBT40 SF10 L120	BBT40 SF10 L120C	10	24	32	93	42	10	M8x1
BBT40 SF12 L120	BBT40 SF12 L120C	12	24	32	93	47	10	M10x1
BBT40 SF14 L120	BBT40 SF14 L120C	14	27	34	93	47	10	M10x1
BBT40 SF16 L120	BBT40 SF16 L120C	16	27	34	93	50	10	M12x1
BBT40 SF18 L120	BBT40 SF18 L120C	18	33	42	93	50	10	M12x1
BBT40 SF20 L120	BBT40 SF20 L120C	20	33	42	93	52	10	M16x1
BBT40 SF25 L120	BBT40 SF25 L120C	25	44	53	93	58	10	M16x1
BBT40 SF32 L120	BBT40 SF32 L120C	32	44	53	93	62	10	M16x1

BBT40 SF03 L160	BBT40 SF03 L160C	3	15	25	133	-	-	-
BBT40 SF04 L160	BBT40 SF04 L160C	4	15	25	133	-	-	-
BBT40 SF05 L160	BBT40 SF05 L160C	5	15	25	133	-	-	-
BBT40 SF06 L160	BBT40 SF06 L160C	6	21	32	133	36	10	M5
BBT40 SF08 L160	BBT40 SF08 L160C	8	21	32	133	36	10	M6
BBT40 SF10 L160	BBT40 SF10 L160C	10	24	34	133	42	10	M8x1
BBT40 SF12 L160	BBT40 SF12 L160C	12	24	34	133	47	10	M10x1
BBT40 SF14 L160	BBT40 SF14 L160C	14	27	42	133	47	10	M10x1
BBT40 SF03 L160	BBT40 SF03 L160C	16	27	42	133	50	10	M12x1
BBT40 SF18 L160	BBT40 SF18 L160C	18	33	51	133	50	10	M12x1
BBT40 SF20 L160	BBT40 SF20 L160C	20	33	51	133	52	10	M16x1
BBT40 SF25 L160	BBT40 SF25 L160C	25	44	53	133	58	10	M16x1
BBT40 SF32 L160	BBT40 SF32 L160C	32	44	60	133	62	10	M16x1

BBT50 SF03 L100	BBT50 SF03 L100C	3	15	20	62	-	-	-
BBT50 SF04 L100	BBT50 SF04 L100C	4	15	20	62	-	-	-
BBT50 SF05 L100	BBT50 SF05 L100C	5	15	20	62	-	-	-
BBT50 SF06 L100	BBT50 SF06 L100C	6	21	27	62	36	10	M5
BBT50 SF08 L100	BBT50 SF08 L100C	8	21	27	62	36	10	M6
BBT50 SF10 L100	BBT50 SF10 L100C	10	24	30.5	62	42	10	M8x1
BBT50 SF12 L100	BBT50 SF12 L100C	12	24	30.5	62	47	10	M10x1
BBT50 SF14 L100	BBT50 SF14 L100C	14	27	34	62	47	10	M10x1
BBT50 SF16 L100	BBT50 SF16 L100C	16	27	34	62	50	10	M12x1
BBT50 SF18 L100	BBT50 SF18 L100C	18	33	40	62	50	10	M12x1
BBT50 SF20 L100	BBT50 SF20 L100C	20	33	40	62	52	10	M16x1
BBT50 SF25 L120	BBT50 SF25 L120C	25	44	53	82	58	10	M16x1
BBT50 SF32 L120	BBT50 SF32 L120C	32	44	53	82	62	10	M16x1

BBT50 SF03 L120	BBT50 SF03 L120C	3	15	20	82	-	-	-
BBT50 SF04 L120	BBT50 SF04 L120C	4	15	20	82	-	-	-
BBT50 SF05 L120	BBT50 SF05 L120C	5	15	20	82	-	-	-
BBT50 SF06 L120	BBT50 SF06 L120C	6	21	27	82	36	10	M5
BBT50 SF08 L120	BBT50 SF08 L120C	8	21	27	82	36	10	M6
BBT50 SF10 L120	BBT50 SF10 L120C	10	24	32	82	42	10	M8x1
BBT50 SF12 L120	BBT50 SF12 L120C	12	24	32	82	47	10	M10x1
BBT50 SF14 L120	BBT50 SF14 L120C	14	27	34	82	47	10	M10x1
BBT50 SF16 L120	BBT50 SF16 L120C	16	27	34	82	50	10	M12x1
BBT50 SF18 L120	BBT50 SF18 L120C	18	33	42	82	50	10	M12x1
BBT50 SF20 L120	BBT50 SF20 L120C	20	33	42	82	52	10	M16x1

BBT50 SF03 L160	BBT50 SF03 L160C	3	15	25	122	-	-	-
BBT50 SF04 L160	BBT50 SF04 L160C	4	15	25	122	-	-	-
BBT50 SF05 L160	BBT50 SF05 L160C	5	15	25	122	-	-	-
BBT50 SF06 L160	BBT50 SF06 L160C	6	21	32	122	36	10	M5
BBT50 SF08 L160	BBT50 SF08 L160C	8	21	32	122	36	10	M6
BBT50 SF10 L160	BBT50 SF10 L160C	10	24	34	122	42	10	M8x1
BBT50 SF12 L160	BBT50 SF12 L160C	12	24	34	122	47	10	M10x1
BBT50 SF14 L160	BBT50 SF14 L160C	14	27	42	122	47	10	M10x1
BBT50 SF16 L160	BBT50 SF16 L160C	16	27	42	122	50	10	M12x1
BBT50 SF18 L160	BBT50 SF18 L160C	18	33	49	122	50	10	M12x1
BBT50 SF20 L160	BBT50 SF20 L160C	20	33	49	122	52	10	M16x1
BBT50 SF25 L160	BBT50 SF25 L160C	25	44	60	122	58	10	M16x1
BBT50 SF32 L160	BBT50 SF32 L160C	32	44	60	122	62	10	M16x1
