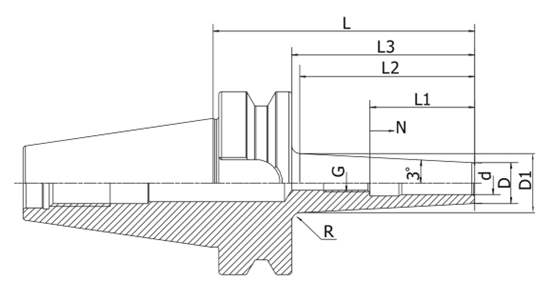

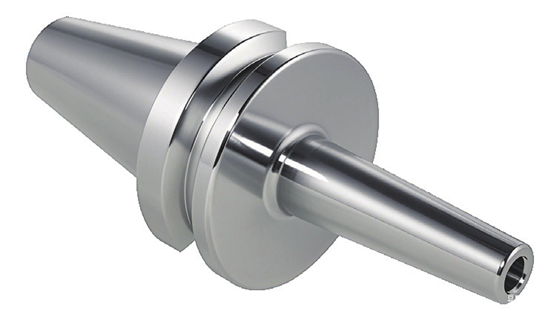

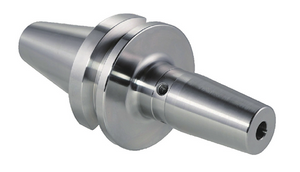

| Shrink Fit Chuck, 3°, slim | ||||||||
| Tools holder JIS B6339 | ||||||||
| MODEL | d | D | L3 | L2 | L1 | N | G | R |
| BT30 SFS03 L80 | 3 | 9 | 58 | 55.2 | - | - | - | 3 |
| BT30 SFS04 L80 | 4 | 10 | 58 | 55.2 | - | - | - | 3 |
| BT30 SFS06 L80 | 6 | 12 | 58 | 55.2 | 36 | 10 | M5 | 3 |
| BT30 SFS08 L80 | 8 | 14 | 58 | 55.2 | 36 | 10 | M6 | 3 |
| BT30 SFS10 L80 | 10 | 16 | 58 | 55.2 | 42 | 10 | M8x1 | 3 |
| BT30 SFS12 L80 | 12 | 18 | 58 | 55.2 | 47 | 10 | M10x1 | 3 |
| BT30 SFS16 L80 | 16 | 22 | 58 | 55.2 | 50 | 10 | M12x1 | 3 |
| BT30 SFS06 L120 | 6 | 12 | 98 | 90.6 | 36 | 10 | M5 | 3 |
| BT30 SFS08 L120 | 8 | 14 | 98 | 90.6 | 36 | 10 | M6 | 3 |
| BT30 SFS10 L120 | 10 | 16 | 98 | 90.6 | 42 | 10 | M8x1 | 3 |
| BT30 SFS12 L120 | 12 | 18 | 98 | 90.6 | 47 | 10 | M10x1 | 3 |
| BT30 SFS16 L120 | 16 | 22 | 98 | 90.6 | 50 | 10 | M12x1 | 3 |
| BT40 SFS03 L90 | 3 | 9 | 63 | 60.2 | - | - | - | 3 |
| BT40 SFS04 L90 | 4 | 10 | 63 | 60.2 | - | - | - | 3 |
| BT40 SFS06 L90 | 6 | 12 | 63 | 60.2 | 36 | 10 | M5 | 3 |
| BT40 SFS08 L90 | 8 | 14 | 63 | 60.2 | 36 | 10 | M6 | 3 |
| BT40 SFS10 L90 | 10 | 16 | 63 | 60.2 | 42 | 10 | M8x1 | 3 |
| BT40 SFS12 L90 | 12 | 18 | 63 | 60.2 | 47 | 10 | M10x1 | 3 |
| BT40 SFS16 L90 | 16 | 22 | 63 | 60.2 | 50 | 10 | M12x1 | 3 |
| BT40 SFS03 L120 | 3 | 9 | 93 | 88.3 | - | - | - | 5 |
| BT40 SFS04 L120 | 4 | 10 | 93 | 88.3 | - | - | - | 5 |
| BT40 SFS06 L120 | 6 | 12 | 93 | 88.3 | 36 | 10 | M5 | 5 |
| BT40 SFS08 L120 | 8 | 14 | 93 | 88.3 | 36 | 10 | M6 | 5 |
| BT40 SFS10 L120 | 10 | 16 | 93 | 88.3 | 42 | 10 | M8x1 | 5 |
| BT40 SFS12 L120 | 12 | 18 | 93 | 88.3 | 47 | 10 | M10x1 | 5 |
| BT40 SFS16 L120 | 16 | 22 | 93 | 88.3 | 50 | 10 | M12x1 | 5 |
| BT40 SFS03 L160 | 3 | 9 | 133 | 128.3 | - | - | - | 5 |
| BT40 SFS04 L160 | 4 | 10 | 133 | 128.3 | - | - | - | 5 |
| BT40 SFS06 L160 | 6 | 12 | 133 | 128.3 | 36 | 10 | M5 | 5 |
| BT40 SFS08 L160 | 8 | 14 | 133 | 128.3 | 36 | 10 | M6 | 5 |
| BT40 SFS10 L160 | 10 | 16 | 133 | 128.3 | 42 | 10 | M8x1 | 5 |
| BT40 SFS12 L160 | 12 | 18 | 133 | 128.3 | 47 | 10 | M10x1 | 5 |
| BT40 SFS16 L160 | 16 | 22 | 133 | 128.3 | 50 | 10 | M12x1 | 5 |
| BT40 SFS20 L160 | 20 | 27 | 133 | 128.3 | 52 | 10 | M16x1 | 5 |
